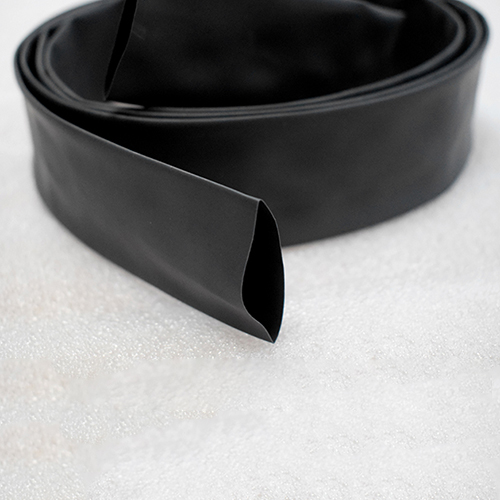

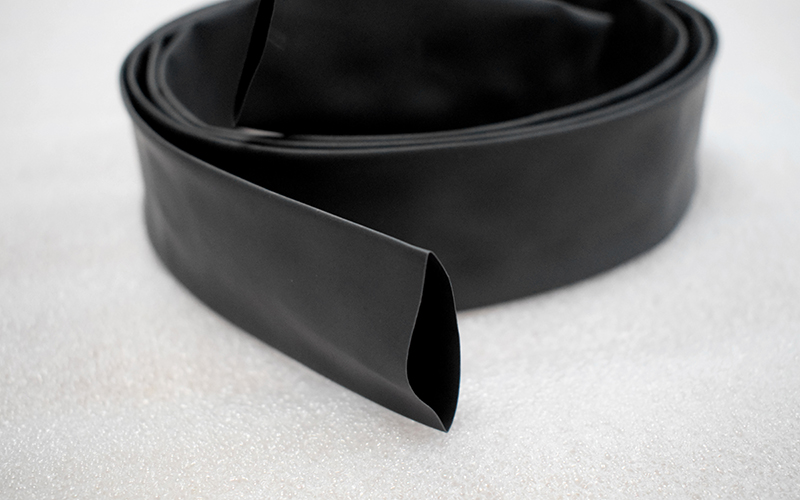

Eigenschaften | Testverfahren | Leistung | Referenzwert |
Verlängerung | ASTMD2671 | -10%~0 | -4% |
Bruchwiderstand | ASTMD638 | ≥10.4MPa | 12.4MPa |
max. Verlängerung | ASTMD638 | ≥200% | 494% |
Dielektrische Stärke | ASTMD2671 | ≥19.7kV/mm | 25.2kV/mm |
Hitzealterungstest | - | - | - |
Bruchwiderstand nach Alterung | ASTMD638 | ≥7.3MPa | 9.8MPa |
max. Verlängerung nach Alterung | ASTMD638 | ≥100% | 225% |
spez. Durchgangswiderstand | ASTMD876 | ≥1.0×1012 Ω·cm | 2.1×1014 Ω·cm |
Spannungsfestigkeit (2500V/60s) | ASTMD2671 | kein Zusammenbruch | bestanden |
Ölbeständigkeit | SAE-AMS-DTL 23053/5 | keine Korrosion | bestanden |
Kupferkorrosion | ASTMD2671 | keine Korrosion | bestanden |
Hitzeschock | SAE-AMS-DTL 23053/5 | keine Lecks, kein Ausfluss, keine Brüche | bestanden |
Kälteschock (±55℃) | ASTMD745 | keine Brüche | bestanden |
Schrumpfrate: 2:1
Größe | wie geliefert (mm) | vor Schrumpfung (mm) | ||
Innendurchmesser | Wandstärke | Innendurchmesser | Wandstärke | |
Ø0.6 | 0.80±0.20 | 0.16±0.08 | ≤0.40 | 0.26±0.0 |
Ø0.8 | 1.30±0.20 | 0.20±0.05 | ≤0.45 | 0.40±0.06 |
Ø1.0 | 1.50±0.20 | 0.20±0.05 | ≤0.60 | 0.40±0.06 |
Ø1.5 | 2.00±0.20 | 0.20±0.08 | ≤0.80 | 0.40±0.08 |
Ø2.0 | 2.50±0.20 | 0.22±0.08 | ≤1.00 | 0.42±0.08 |
Ø2.5 | 3.00±0.20 | 0.25±0.10 | ≤1.25 | 0.46±0.08 |
Ø3.0 | 3.50±0.30 | 0.25±0.10 | ≤1.50 | 0.46±0.08 |
Ø3.5 | 4.00±0.30 | 0.25±0.10 | ≤1.75 | 0.46±0.08 |
Ø4.0 | 4.50±0.30 | 0.25±0.10 | ≤2.00 | 0.48±0.08 |
Ø4.5 | 5.00±0.30 | 0.25±0.10 | ≤2.25 | 0.50±0.10 |
Ø5.0 | 5.50±0.20 | 0.25±0.06 | ≤2.50 | 0.50±0.10 |
Ø6.0 | 6.50±0.40 | 0.25±0.10 | ≤3.00 | 0.50±0.10 |
Ø6.5 | 7.00±0.40 | 0.30±0.12 | ≤3.25 | 0.58±0..10 |
Ø7.0 | 7.70±0.30 | 0.30±0.12 | ≤3.50 | 0.60±0.10 |
Ø8.0 | 8.50±0.50 | 0.36±0.10 | ≤4.00 | 0.70±0.10 |
Ø9.0 | 9.50±0.50 | 0.36±0.10 | ≤4.50 | 0.72±0.10 |
Ø10 | 10.5±0.50 | 0.36±0.10 | ≤5.50 | 0.72±0.10 |
Ø11 | 11.5±0.50 | 0.36±0.10 | ≤6.00 | 0.72±0.10 |
Ø12 | 12.5±0.50 | 0.36±0.10 | ≤6.50 | 0.72±0.10 |
Ø13 | 13.5±0.50 | 0.36±0.10 | ≤7.00 | 0.72±0.10 |
Ø14 | 14.5±0.50 | 0.36±0.10 | ≤7.50 | 0.72±0.10 |
Ø15 | 15.5±0.50 | 0.36±0.10 | ≤8.00 | 0.70±0.10 |
Ø16 | 16.7±0.40 | 0.36±0.10 | ≤8.50 | 0.70±0.10 |
Ø17 | 17.70±0.40 | 0.36±0.10 | ≤9.00 | 0.70±0.12 |
Ø18 | 18.70±0.50 | 0.40±0.10 | ≤10.00 | 0.78±0.10 |
Ø20 | 20.70±0.50 | 0.40±0.10 | ≤10.0 | 0.80±0.15 |
Ø22 | 22.70± 0.60 | 0.46±0.12 | ≤11.0 | 0.90±0.15 |
Ø25 | 26.00±0.50 | 0.45±0.20 | ≤12.5 | 0.95±0.20 |
Ø28 | 29.20±0.70 | 0.45±0.20 | ≤15.0 | 0.95±0.20 |
Ø30 | 31.00±0.80 | 0.46±0.15 | ≤15.0 | 1.00±0.20 |
Ø35 | 36.00±0.10 | 0.50±0.15 | ≤17.5 | 1.10±0.25 |
Ø45 | 46.00±1.00 | 0.55±0.25 | ≤22.5 | 1.10±0.25 |
Ø50 | 52.00±1.00 | 0.60±0.25 | ≤26.0 | 1.20±0.25 |
Ø55 | ≥55.0 | 0.60±0.25 | ≤28.0 | 1.20±0.25 |
Ø60 | ≥60.0 | 0.60±0.25 | ≤30.0 | 1.20±0.25 |
Ø70 | ≥70.0 | 0.55±0.15 | ≤35.0 | 1.20±0.15 |
Ø80 | ≥80.0 | 0.70±0.30 | ≤40.0 | 1.25±0.20 |
Ø95 | ≥90.0 | 0.70±0.30 | ≤45.0 | 1.45±0.25 |
Ø100 | ≥100.0 | 0.70±0.30 | ≤50.0 | 1.45±0.25 |
